Slant Six Steel Roller Cam "Core" Casting Project
 (See image title for discription & info)

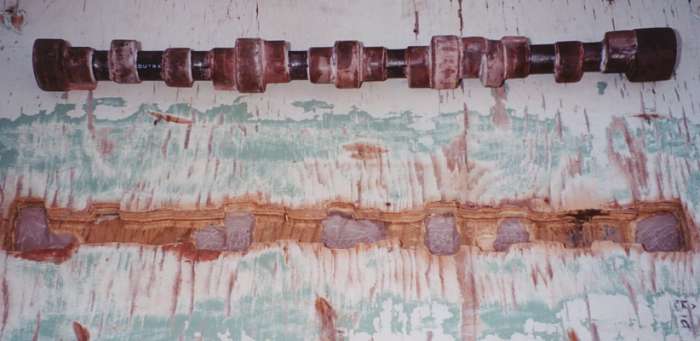

Loose pattern fits into the followblock , work in progress

























Pattern & Followblock w/ Runners ready for mold making













First Casting next to a stock cam, Looks Good

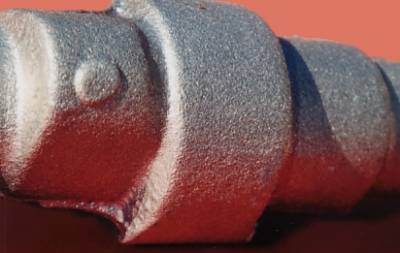

Cast Steel "Blank" half view, no grinding or machining Lobes and Journals cast to near finished size

Still lots of machining to do, no shop wants to do the center gear work
